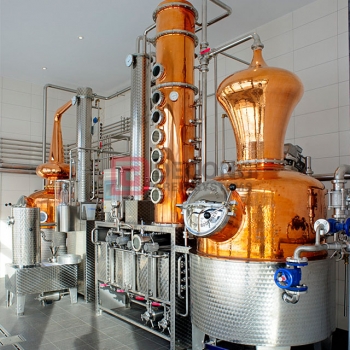

Composition of 500L distillation equipment 500L distillation tank, explosion-proof stirring motor, all-glass manhole. Helmet copper whiskey helmet. 16 pieces of pillar copper. Condenser column made of copper, pipe and shell type. The support base is made of SS, and the water tank and product tank are used as the support base. Distillation pot: inner full copper pot, outer steam jacket insulation layer, outer fish scale polished, full glass manhole view, stirring with agitator on the top. Column board: full CU122 copper foam board, operated with a valve on the side, CIP ball inserted into each board for cleaning, and operated with CIP pipes and valves on the back. Bottom collection tank: The water tank collects condensate water and uses CIP to clean it, the alcohol tank is collected directly from the parrot, and the bottom is connected to a water pump. Blister: Composed of blister, drain pipe, bubble plate, red copper screw, bubble tee (we have stainless steel 304 and red copper optional). Control panel: The material of the control box is stainless steel 304 or plastic optional. Applicable voltage: 208/220/240V single-phase 60Hz, heating temperature can be adjusted by module. The water outlet adopts a high hygienic glass cover, with a copper cover on the top, a straight opening type, and a valve at the bottom.
