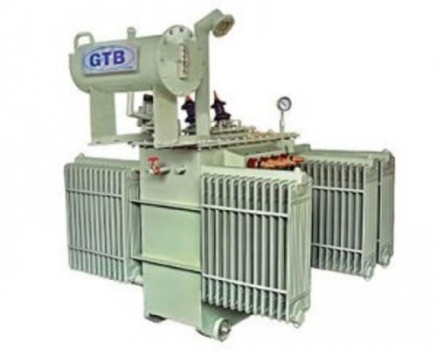

RANGE OF TRANSFORMER 5 KVA – 5000 KVA (6.6 KV , 11 KV , 22 KV, 33 KV) VECTOR GROUP Unless or otherwise specified, the transformers will be connected as per Vector Group reference DYn 11 in accordance with International practice. CORE: The core used is best quality cold rolled grain oriented and laser processed silicon steel sheet. They provide low iron loss, low noise, and compact size and have the best performance for high efficiency transformers. WINDINGS As one of the Top Distribution Transformer Manufacturers in India, we use high quality conductor of copper aluminium in our products. Round or rectangular copper/aluminium wires ribbed with thermally upgraded insulting paper are applied in oil immersed transformers. The winding have a compact size, excellent heat transmission, low load loss, high lighting impulse resistivity and outstanding anti-short- circuit strength. INSULATION: Oil-immersed transformers are insulated by electrical grade insulated press board and thermally upgrade insulating Kraft paper. TAPPINGS Tapings + 5% to -15% in steps of 1.25% or as per customer’s requirement. OIL Dehydrated EHV-Grade transformers oil as per IS 355 (1993) with latest amendments is used for proper insulation and cooling after testing for all the parameters viz a viz resistivity, tan delta, BDV, neutralization, flash point etc. BUSHINGS HV/LV Bushings: The quality porcelain bushings are used on the high voltage terminals/low voltage terminals. Optional bushing wells, inserts and elbows are available upon request. High voltage cables are inserted directly and show no live parts outside. ACCESSORIES The accessories include an oil filling hole, oil drain valve, safety valve, standard thermometer, oil level gauge, skid wheel, jacking pad, breather, earthling terminal OPTIONAL ACCESSORIES Buchholz relay, cooling fan, HV & LV cable box, cable duct, bus bar duct, dial-type thermometer, oil level gauge, on-load type tap changer, protective fuse and lightening arresters that are available upon customer’s request at extra cost. Power 100kVA Number of Phase 3-Phase Voltage Ratio 11kV/433V Winding Material Mild Steel Cooling Type Oil Cooled Primary Connection Type Star or Wye Brand GTB We are the leading and prominent Manufacturer, Exporter and Wholesaler of Distribution Transformer. Dealing in 100kVA to 5000kVA
