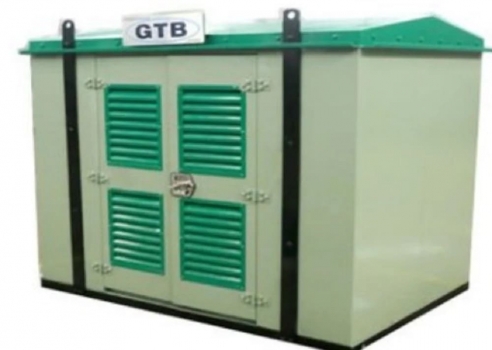

400kVA 3-Phase Oil Cooled Compact Substation Power Rating 500kVA Number of Phase 3-Phase Voltage Ratio 11kV/433V Cooling Type Oil Cooled Winding Material Copper Standards IS-1180 Brand GTB GTB’s Compact Substation is used for feeding power from high voltage to low voltage in open cast mines, construction sites, metro cities etc. The substation is compact in size, suitable for frequent shifting and for use in indoor/outdoor locations. The substation is installed and mounted on skid frame or wheels or channels and is provided with lifting hooks. Features: Easy to operate, safe. Compact portable ready to install Designed for better cooling Transformer dry type or oil cooled Low maintenance Customer made design Superior aesthetics Suitable for all weathers HT Compartment: Ring Main Unit Vacuum Circuit Breaker Load Break Switches Transformer Compartment: Oil Cooled Transformer or Cast VPI Dry Type Low Losses Design Tap Changer LT Compartment: Air circuit breaker Molded case circuit breaker Fuse units Fuses Voltage 33kV/433V also avaialble. Also avaialble in Dry Type Cooling. Price mentioned above varies as per customer requirements. Clientele: Schneider Electric McDonalds MBD Pizza Hut IBP GVK TATA Aditya Birla Bharat Petroleum Reliance V-Guard Luminous Hamdard Insecticides India Limited Daawat Amtek Murugappa Phzer ITC Limited NHPC
